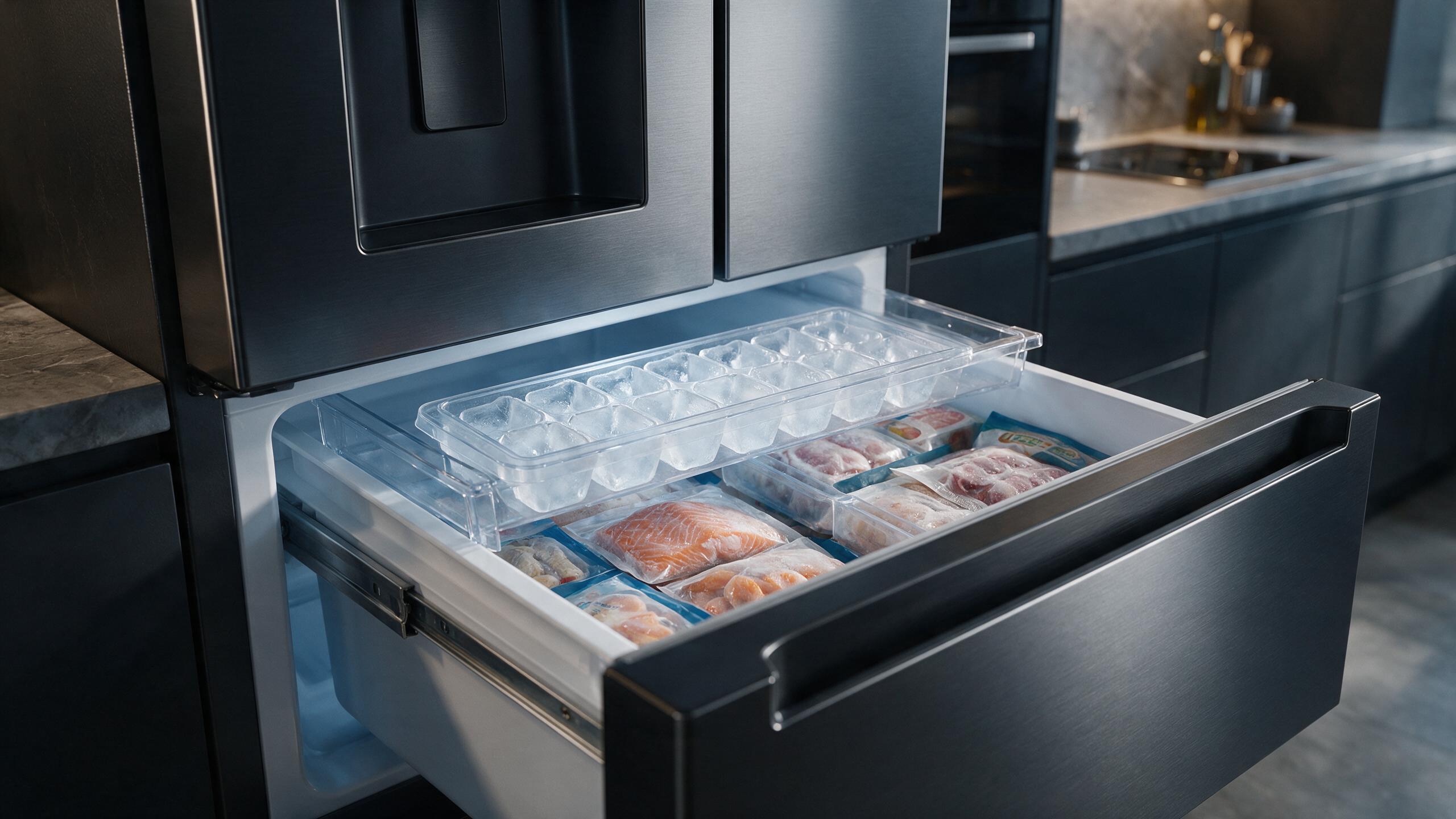

Viking Refrigerator Ice Maker Makes Small or Hollow Cubes: Start With Water Flow

Ice shape can be a useful diagnostic clue. Viking refrigerator troubleshooting literature describes hollow or small cubes as a sign of low water pressure on applicable refrigerator platforms, while also pointing owners toward the shutoff valve, tubing, filter condition, and reverse-osmosis supply context.

That does not make every small cube a plumbing-only issue, but it does mean water delivery should be checked before an ice-maker mechanism or electronic control is blamed.

The important point is to change one variable at a time. If you reset power, change settings, clean several parts, and move the appliance all at once, you can erase the evidence that would have made diagnosis faster.

Build a Simple Diagnostic Timeline

Compare cube size with dispenser flow and production rate. Small cubes plus slow water flow suggest a different starting point than normal dispenser flow with erratic harvest or a warm freezer.

A useful observation has three parts: what the appliance was asked to do, what it actually did, and when the difference appeared. That format is more useful than a broad label such as “broken,” “not working,” or “acts weird.” It also prevents a temporary installation or operating condition from being mistaken for a failed component.

Why does a Viking ice maker make small or hollow cubes?

Low water pressure is the first suspect on applicable models, along with a partly closed shutoff valve, tubing, a restricted filter, or reverse-osmosis supply. Freezer temperature can matter too.

1. Partially closed household shutoff valve

A restricted supply reduces the water available during each fill.

2. Kinked or restricted water line

A bend behind cabinetry can limit flow without stopping it completely.

3. Clogged or incorrectly installed filter

Viking troubleshooting material specifically notes filter restriction as a cause of reduced water flow on applicable models.

4. Low supply pressure or reverse-osmosis interaction

Some filtration setups can reduce effective pressure enough to affect ice fill.

5. Freezer temperature or ice-maker control issue

If water flow is normal, production timing, temperature, sensing, or the ice maker itself may need model-specific diagnosis.

These are diagnostic directions, not a replacement-parts list. More than one condition can exist at the same time, and the same visible symptom can be produced by different systems on another Viking model.

Owner Checks Worth Doing

1. Compare water-dispenser flow. If the refrigerator has a dispenser, note whether flow has also slowed.
2. Check the shutoff valve. Confirm the user-accessible household valve is fully open without forcing a stuck valve.
3. Inspect visible tubing. Look for obvious kinks only where the line is safely visible; do not pull a built-in refrigerator out of cabinetry.
4. Review filter history. Confirm the correct filter is fully seated and note when it was last changed.
5. Measure freezer temperature. Ice production depends on a sufficiently cold freezer, so record the actual temperature.

Do only the checks that are normal owner tasks for the exact product. If a step would require removing a service panel, moving a built-in appliance, disconnecting a gas fitting, opening a sealed refrigeration circuit, or measuring live voltage, skip it.

Viking-Specific Model Context

Viking refrigeration spans multiple built-in, integrated, freestanding, undercounter, ice-and-water, and legacy generations. Similar symptoms can map to different hardware, so the complete model number is part of every serious diagnosis.

That is also why a generic search result should not be allowed to overwrite the model number. Exact model identity belongs with the symptom, any displayed code, and the installation style when service is requested.

The Point Where Service Makes Sense

Shut off the water supply and arrange service if you find an active leak. Do not disconnect pressurized internal refrigerator tubing or access live inlet valves as a DIY test.

A reasonable stopping point for owner troubleshooting is reached once temperature, door closure, visible airflow, loading, and any user-serviceable filter or water-supply condition have been documented. Beyond that point, opening panels usually adds risk without adding reliable evidence.

What does professional diagnosis involve here?

A service visit can separate household pressure and supply issues from inlet-valve flow, filter housing restriction, freezer temperature, ice-maker fill/harvest operation, and control signals.

A proper diagnosis should connect each test to the symptom instead of replacing expensive assemblies until the problem disappears. Ask what was verified, what failed the test, and how that finding explains the behavior you reported.

Which details help most when you book a visit?

• complete Viking model number and serial information from the rating label
• the exact symptom in one sentence
• when it started and whether it is constant or intermittent
• what related function still works normally
• any code, message, alarm, or light pattern before reset
• recent power, gas, water, drain, cleaning, filter, installation, or remodeling events
• photos/video when sound, flame, water, frost, or a display pattern is visible safely
• service-area ZIP code

This information is particularly useful for intermittent problems because the appliance may behave normally by the time a technician arrives.

Common Mistakes That Make Diagnosis Harder

• Applying a code or repair procedure from a different Viking product generation.
• Clearing a useful display code before taking a photo.
• Ordering the most commonly mentioned part before confirming the exact model and failure pattern.
• Running repeated resets until an intermittent problem temporarily disappears.

Preserving evidence matters. A photo of an alarm, the exact burner that behaves differently, the water level after a drain cycle, or the temperature trend over several hours can save more diagnostic time than another power reset.

Repair Now, Monitor, or Stop Using It?

A practical decision depends on safety and function. Stop using the appliance when the symptom involves gas odor, active water near electricity, smoke, arcing, uncontrolled heat, repeated breaker trips, unsafe food-storage temperature, or a powered mechanism that is binding. Monitor briefly only when the symptom is mild, the appliance remains safe, and the checks above are producing useful evidence. Book diagnosis when the same symptom returns under normal conditions or when confirming the cause requires internal testing.

For built-in and premium installations, access is part of the job. Tell the service team if the appliance is panel-ready, tightly built into cabinetry, installed outdoors, behind custom millwork, or connected to a hard-to-reach shutoff. That helps the visit begin with the right plan rather than moving the appliance unnecessarily.

Related Viking Service and Reference Pages

• `/services/refrigerator-repair/`
• `/appliances/refrigerators/`
• `/models/`
• `/contact/`

Use model pages for exact-model identity and the error-code library for exact code meanings. This article is intentionally focused on the symptom and decision path, so those page types can support one another.

Intermittent operation does not automatically make the condition safe. Continue only when the symptom is minor, the owner manual allows normal use, and there is no gas odor, leak, overheating, arcing, breaker trip, unsafe temperature, or other stop-use condition described in this guide.

Should I reset the appliance before service?

Record any code or light pattern first. One normal model-approved restart can be useful when the condition is safe, but repeated resets can hide useful evidence without correcting the cause.

Does this symptom identify one failed part?

No. The symptom narrows the system to investigate, but installation, utilities, wiring, sensors, controls, and mechanical components can create similar behavior.

Why does the full Viking model number matter?

Viking has multiple product families and generations. The model number determines the control platform, component layout, documentation, and the correct service procedure.

What should I send when booking service?

Send the full model number, the exact symptom, any code or display photo, when it occurs, what still works, the safe checks already completed, and your ZIP code.
